#coding: utf-8

"""
ZetCode wxPython tutorial

In this example we create a Go To class
layout with wx.BoxSizer.

author: Jan Bodnar
website: www.zetcode.com
last modified: April 2018
"""


#縦方向のBoxSizer(wx.VERTICAL)の中で横方向のBoxSizer(wx.HORIZONTAL)
#を入れ子に使う


import wx

class Example(wx.Frame):

    def __init__(self, parent, title):
        super(Example, self).__init__(parent, title=title)

        self.InitUI()
        self.Centre()

    def InitUI(self):

        panel = wx.Panel(self)

        font = wx.SystemSettings.GetFont(wx.SYS_SYSTEM_FONT)
        font.SetPointSize(9)

        vbox = wx.BoxSizer(wx.VERTICAL)
        #縦方向のBoxSizer

        hbox1 = wx.BoxSizer(wx.HORIZONTAL)
        #第一の横方向のBoxSizer
        st1 = wx.StaticText(panel, label='Class Name')
        st1.SetFont(font)
        hbox1.Add(st1, flag=wx.RIGHT, border=8)
        tc = wx.TextCtrl(panel)
        hbox1.Add(tc, proportion=1)
        vbox.Add(hbox1, flag=wx.EXPAND|wx.LEFT|wx.RIGHT|wx.TOP, border=10)
        #第一横BoxSizerを縦BoxSizerに追加

        vbox.Add((-1, 10))
        #縦BoxSizerに縦に10ピクセルの詰め物

        hbox2 = wx.BoxSizer(wx.HORIZONTAL)
        st2 = wx.StaticText(panel, label='Matching Classes')
        st2.SetFont(font)
        hbox2.Add(st2)
        vbox.Add(hbox2, flag=wx.LEFT | wx.TOP, border=10)

        vbox.Add((-1, 10))

        hbox3 = wx.BoxSizer(wx.HORIZONTAL)
        tc2 = wx.TextCtrl(panel, style=wx.TE_MULTILINE)
        hbox3.Add(tc2, proportion=1, flag=wx.EXPAND)
        vbox.Add(hbox3, proportion=1, flag=wx.LEFT|wx.RIGHT|wx.EXPAND,
            border=10)

        vbox.Add((-1, 25))

        hbox4 = wx.BoxSizer(wx.HORIZONTAL)
        cb1 = wx.CheckBox(panel, label='Case Sensitive')
        cb1.SetFont(font)
        hbox4.Add(cb1)
        cb2 = wx.CheckBox(panel, label='Nested Classes')
        cb2.SetFont(font)
        hbox4.Add(cb2, flag=wx.LEFT, border=10)
        cb3 = wx.CheckBox(panel, label='Non-Project classes')
        cb3.SetFont(font)
        hbox4.Add(cb3, flag=wx.LEFT, border=10)
        vbox.Add(hbox4, flag=wx.LEFT, border=10)

        vbox.Add((-1, 25))

        hbox5 = wx.BoxSizer(wx.HORIZONTAL)
        btn1 = wx.Button(panel, label='Ok', size=(70, 30))
        hbox5.Add(btn1)
        btn2 = wx.Button(panel, label='Close', size=(70, 30))
        hbox5.Add(btn2, flag=wx.LEFT|wx.BOTTOM, border=5)
        vbox.Add(hbox5, flag=wx.ALIGN_RIGHT|wx.RIGHT, border=10)

        panel.SetSizer(vbox)
        #パネルpanelのメソッドSetSizerを使って縦BoxSizerを設定


def main():

    app = wx.App()
    ex = Example(None, title='Go To Class')
    ex.Show()
    app.MainLoop()


if __name__ == '__main__':
    main()

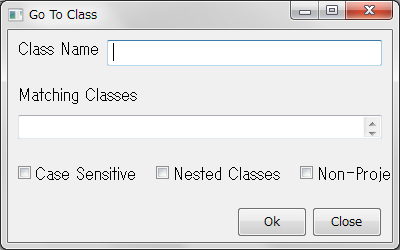

	実行例
